HU - Wheels in

Technical details:

Gross trailer weight:

750 kg (Unbraked)

1.300 kg (Braked)

1.500 kg (Braked)

Payload capacity: from 520 kg to 1.210 kg

Inner measurements: 2300 x 1400 x 300 mm

Total measurements: 3580 x 1535 x 955 mm

Tyres: 145/80 R13 or 195/50 R13 C

Standard equipment:

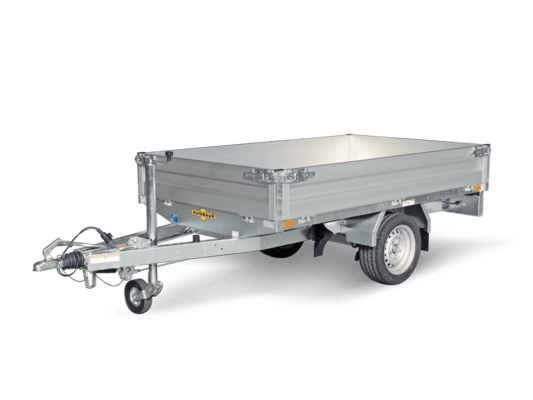

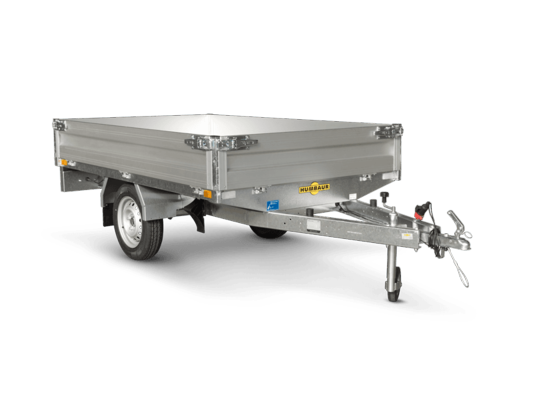

Hot-dip galvanised v-shaped coupling combined with longitudinal beam.

Hot-dip galvanised chassis and frame.

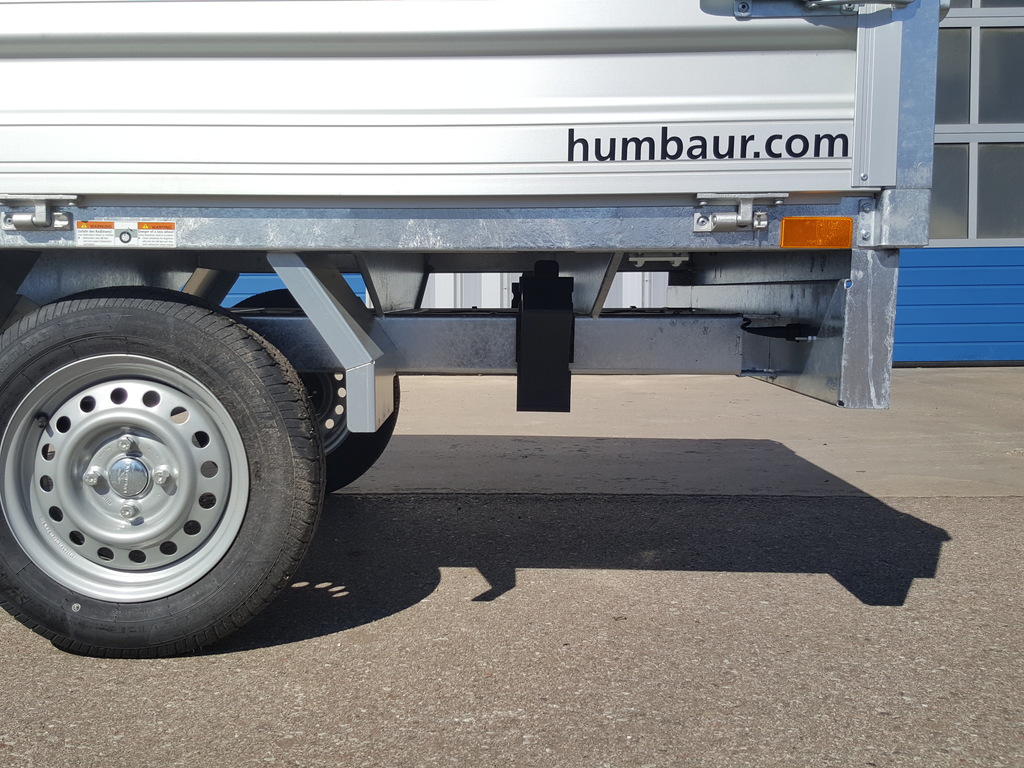

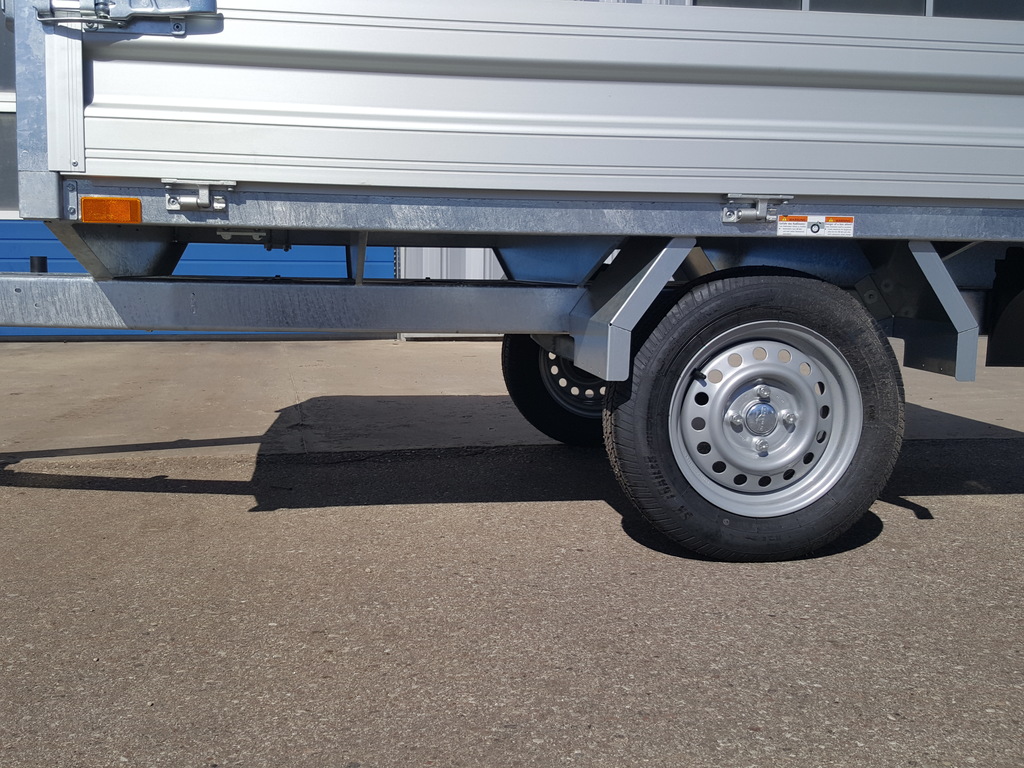

Torsion suspension.

13-pin plug and reversing light.

15 mm thick base plate.

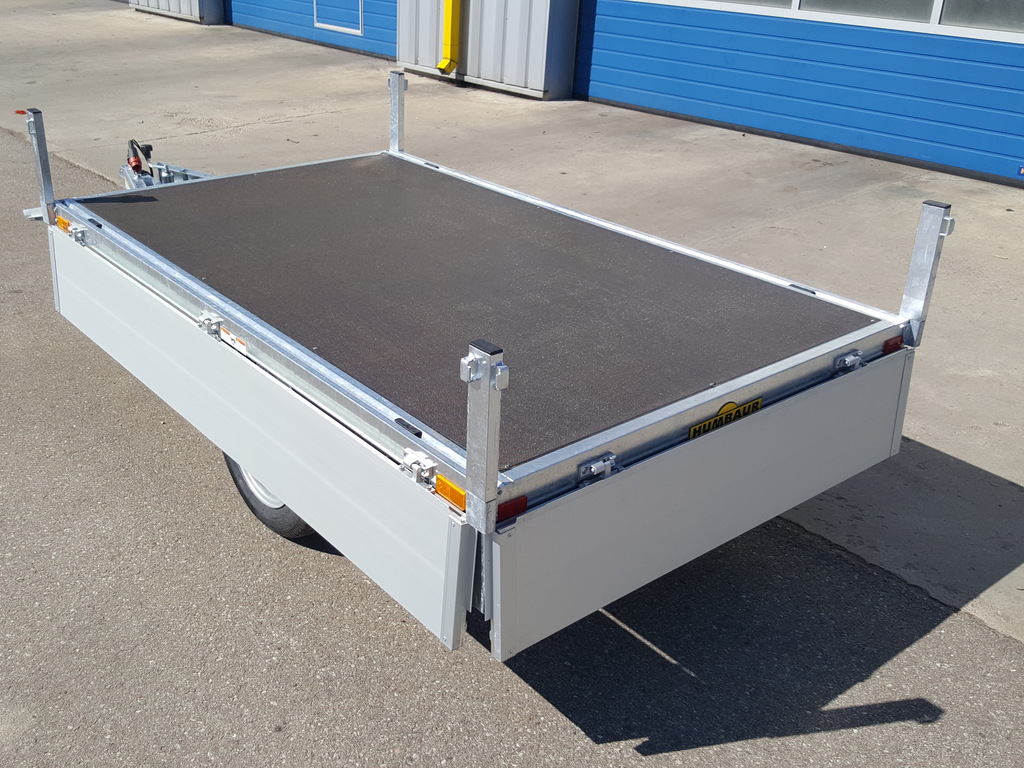

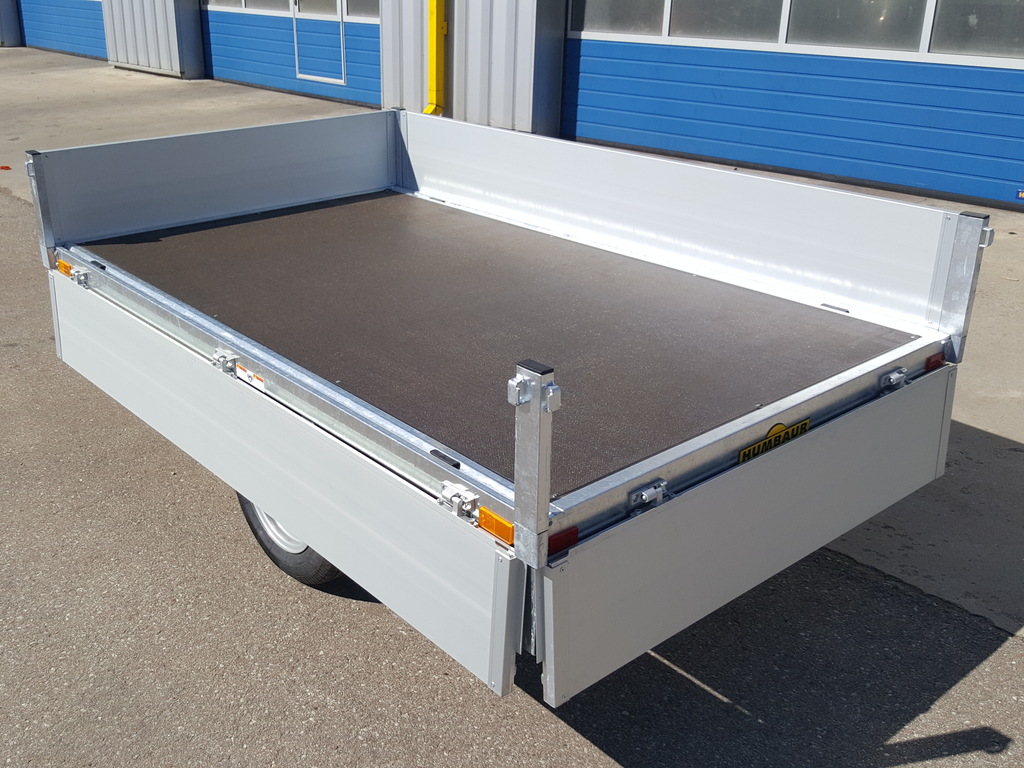

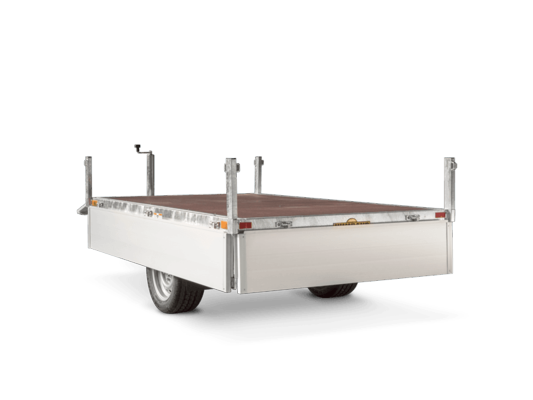

Completely removable platform gates made from anodised aluminium with sunken fasteners.

Lashing eyes in outer frame section.

Jockey wheel.

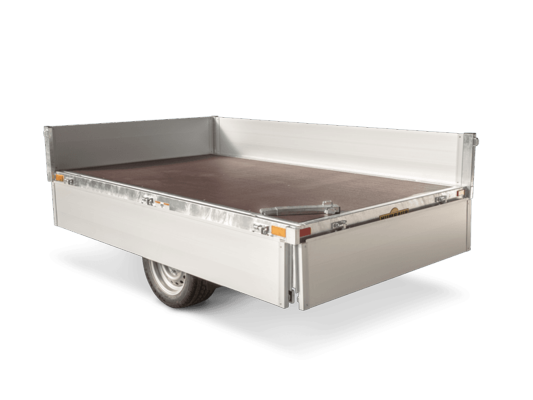

Photo gallery:
