HA - Aluminium, sides 500 mm

Technical details:

Available gross trailer weight:

750 kg (Unbraked)

1.000 kg (Braked)

1.300 kg (Braked)

Available payload capacity: from 565 kg to 1.043 kg

Possible inner measurements:

2050 x 1100 x 500 mm

2050 x 1310 x 500 mm

2510 x 1310 x 500 mm

Height of drop sides: 500 mm

Tyres: 145/80 R13; 185/65 R14

Standard equipment:

Hot-dip galvanised v-shaped coupling.

Torsion suspension.

13-pin plug and reversing light.

15 mm thick base plate.

Platform gates made from anodised aluminium.

Flap(s) with sunken fasteners.

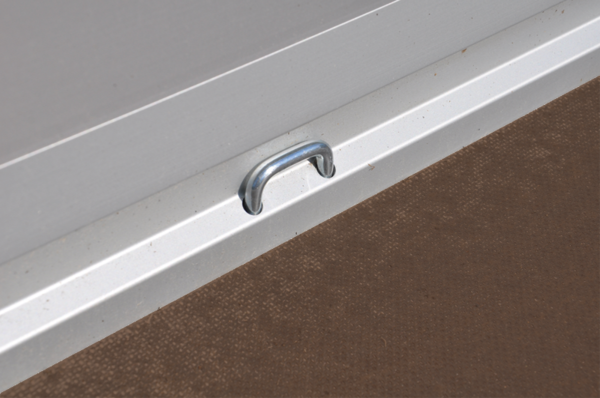

Integrated tie-down rings: (4 pieces up to 2050 mm length of box, 6 pieces from 2510 mm length of box) on the platform gate sides, traction force 400 kg per tie-down ring.

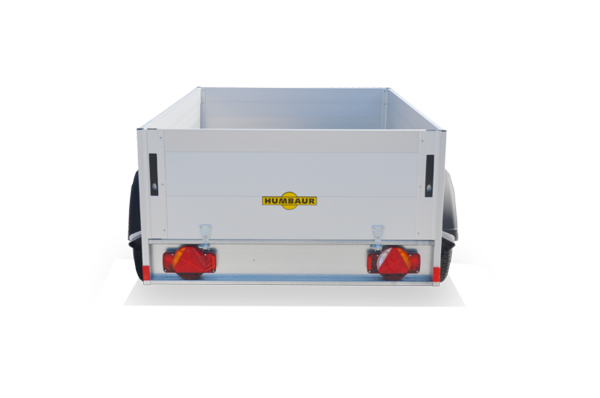

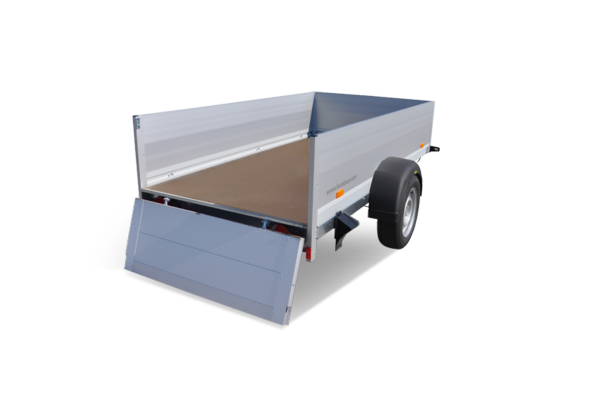

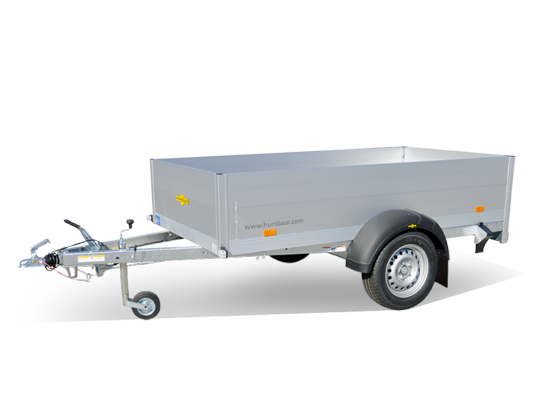

Photo gallery:
