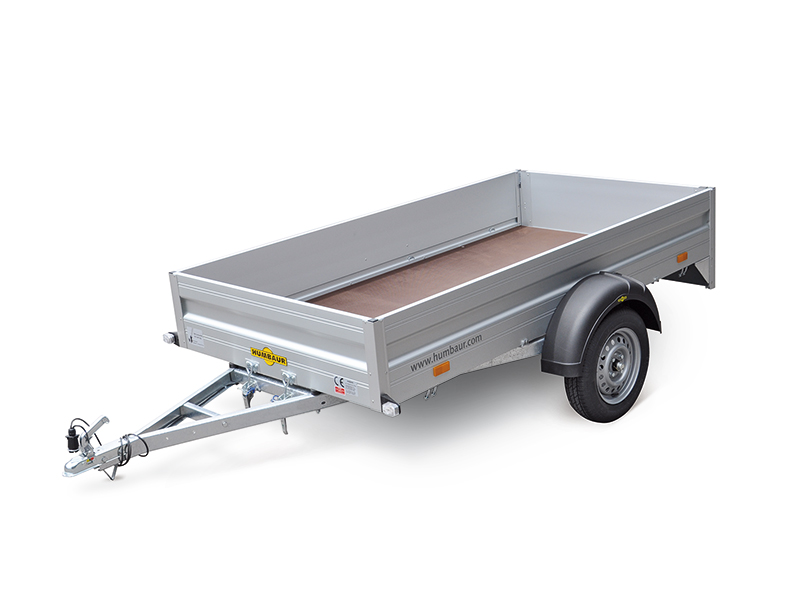

HA - Aluminium tipper

Technical details:

Gross trailer weight:

750 kg (Unbraked)

1.300 kg (Braked)

Payload capacity: from 577 kg to 1.046 kg

Inner measurements: 2510 x 1310 x 350 mm

Total measurements: 3795 x 1800 x 915 mm

Tyres: 145/80 R13; 185/65 R14

Standard equipment:

Hot-dip galvanised v-shaped coupling.

Torsion suspension.

13-pin plug and reversing light.

15 mm thick base plate.

Platform gates made from anodised aluminium

Flap with sunken fasteners.

Integrated 6 pieces tie-dowm rings on the platform gate sides, traction force 400 kg per lashing ring and approved by DEKRA.

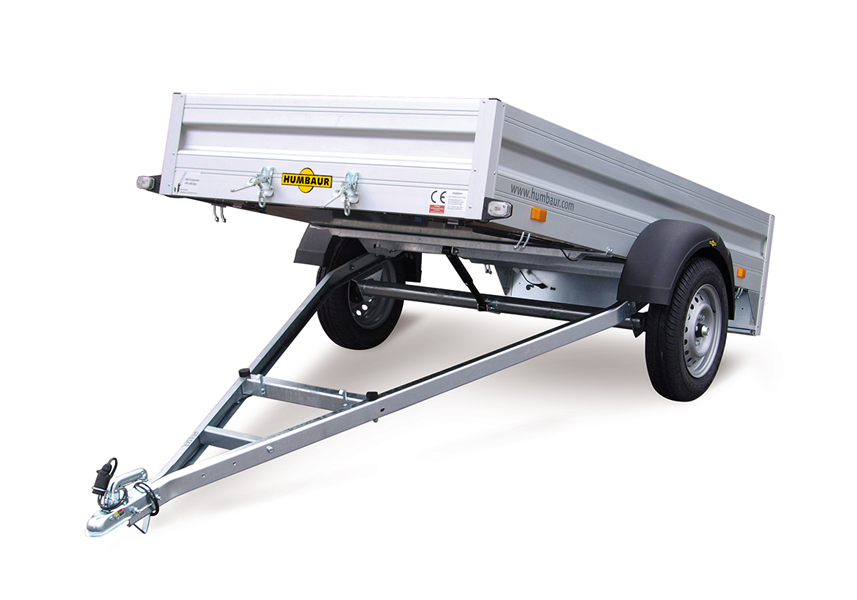

Platform with shock absorbers for tipping.
